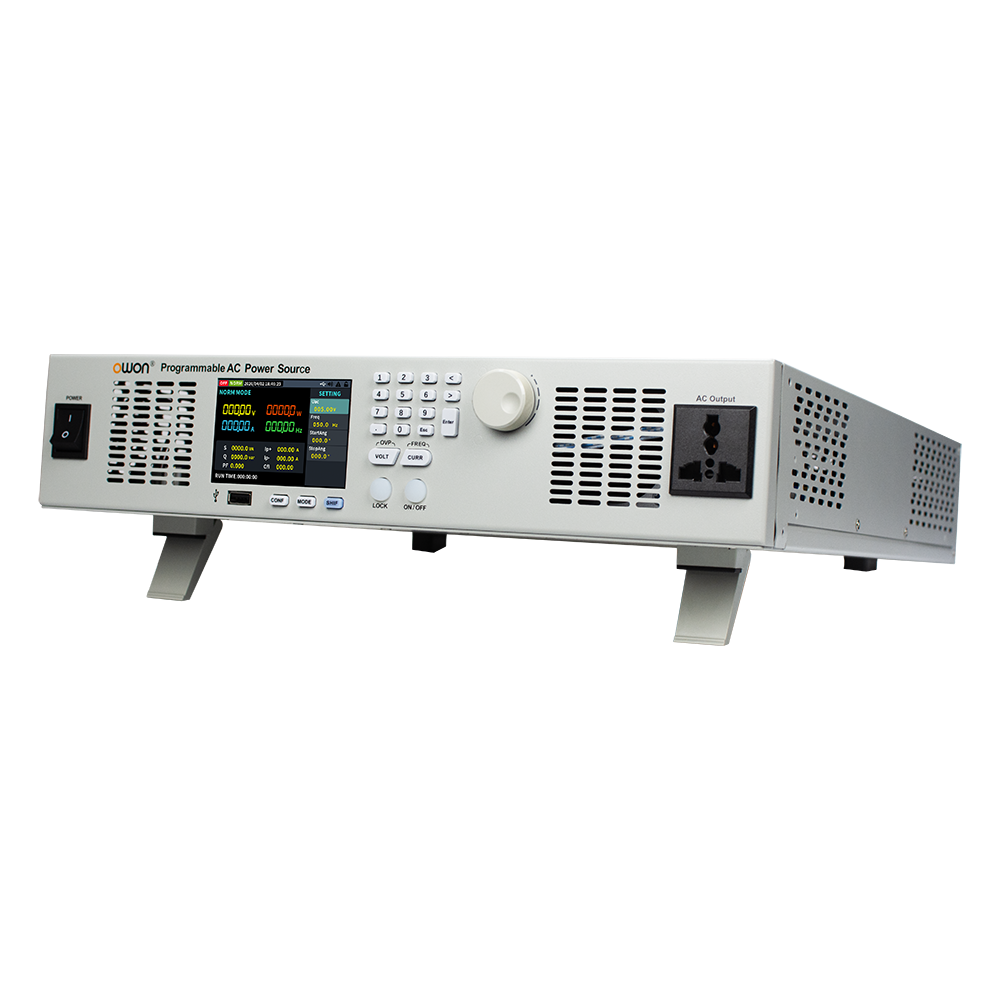

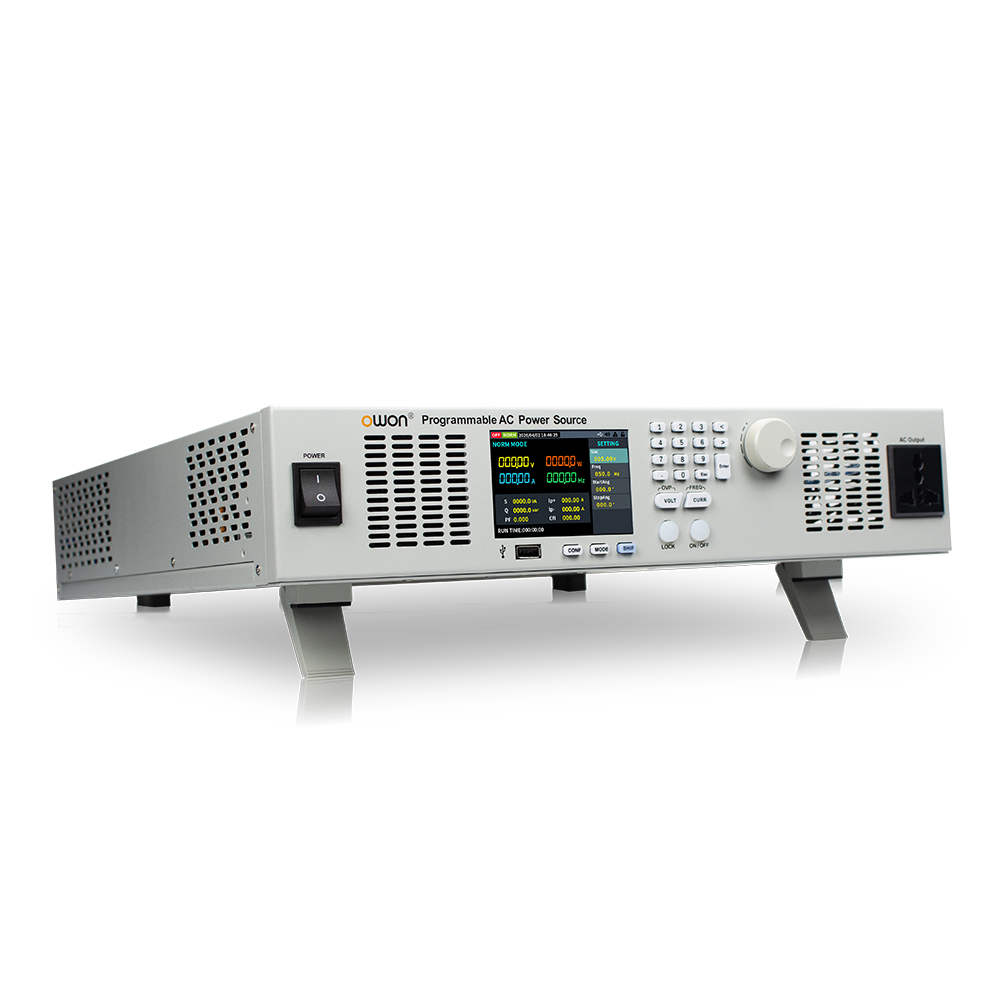

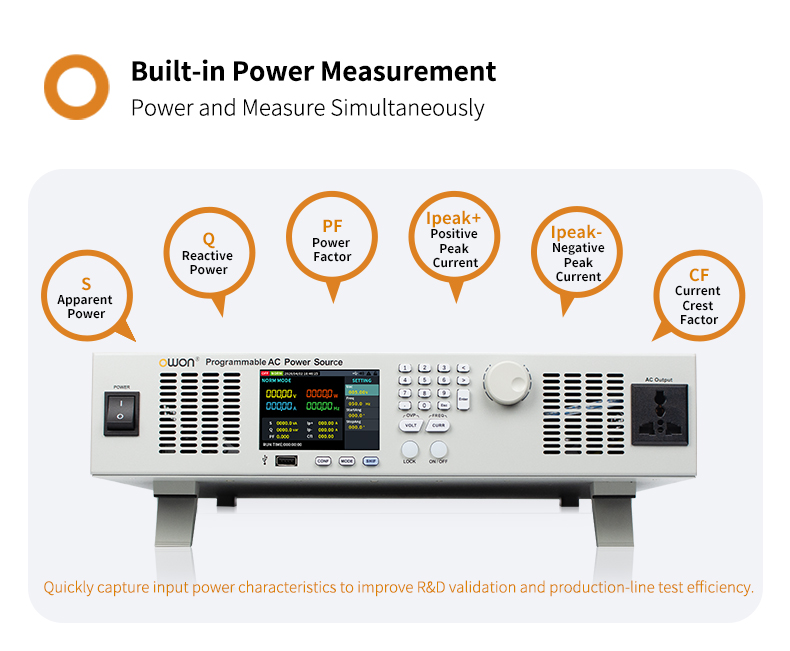

ACP Series AC/DC Power Source
+ Adjustable voltage and frequency output, with voltage range of 0-300V and frequency from 40Hz-400Hz.
+ Adjustable AC/DC output support, 0-300Vac or ±450Vdc for ACP3045 model only.
+ High crest factor & 45A Max. Peak Curren

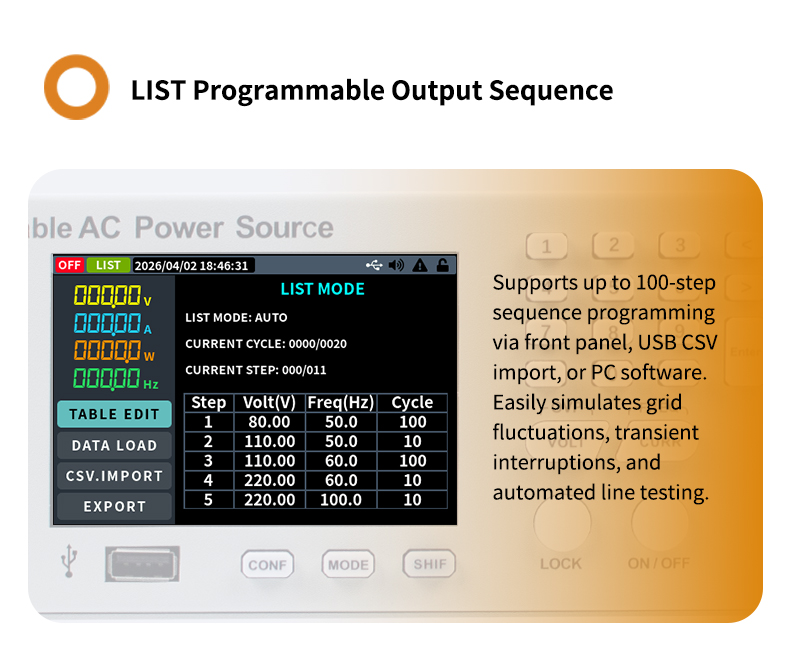

+ List Mode for mains simulation and reproduction, with support for transient power interruption simulation.

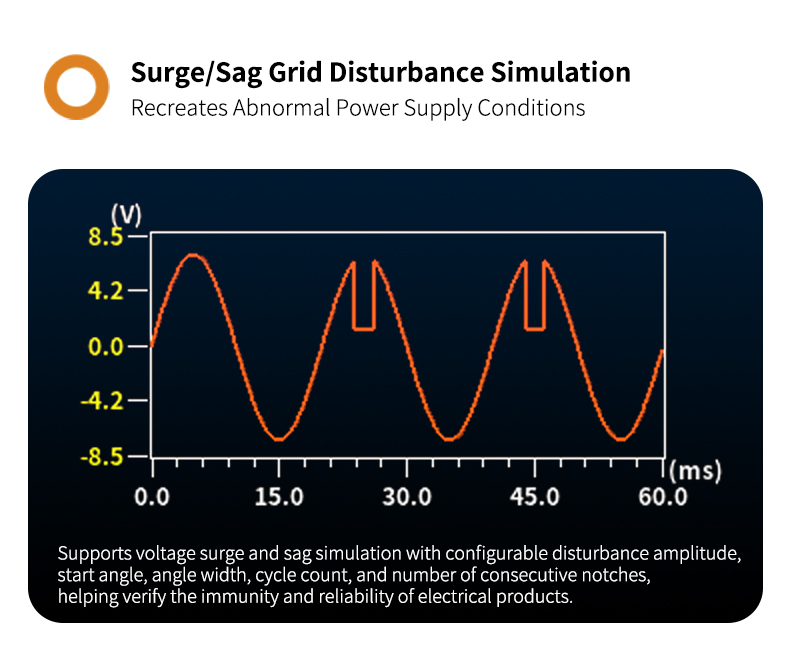

+ Surge/Sag mode for grid disturbance simulation, including voltage surge and voltage sag.
Fully configurable 0-360° output start and stop phase angle
+ Built-in relay control output for reliable electrical isolation.
+ Full digital control integrated with OVP, OCP, OPP protection.

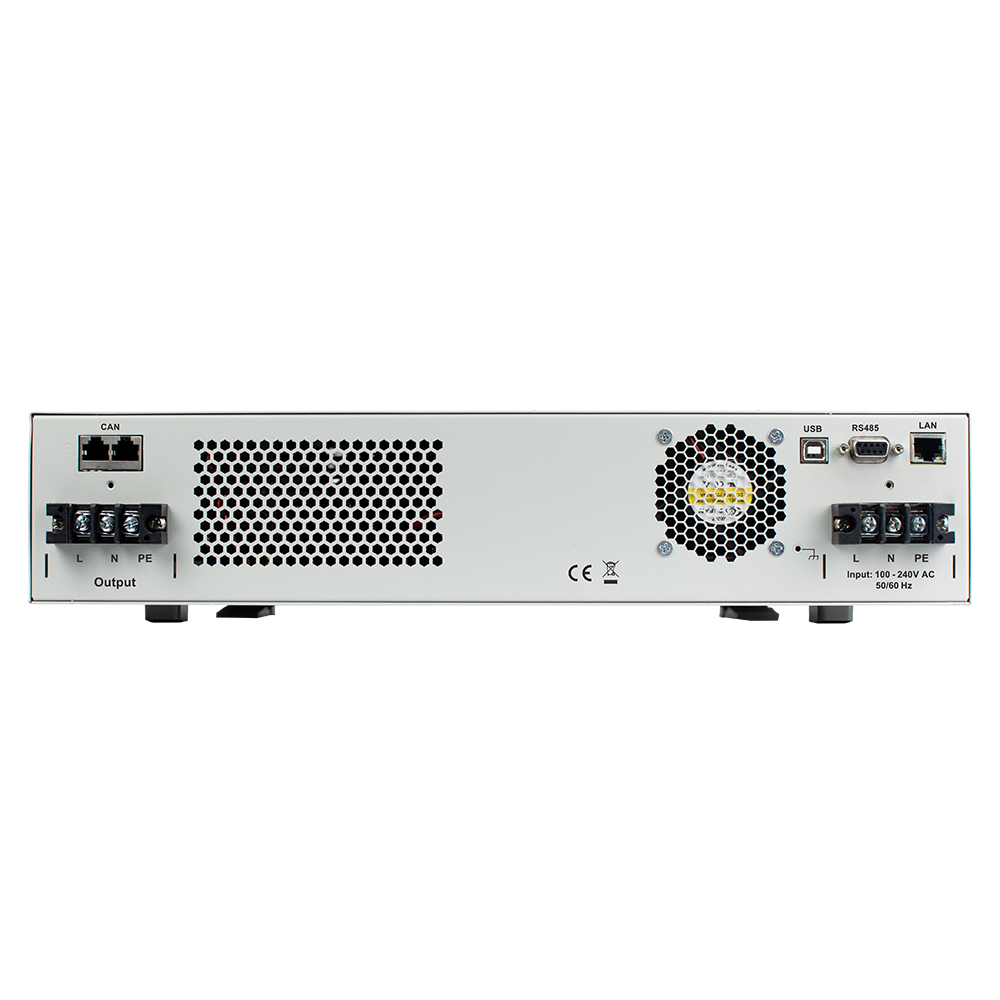

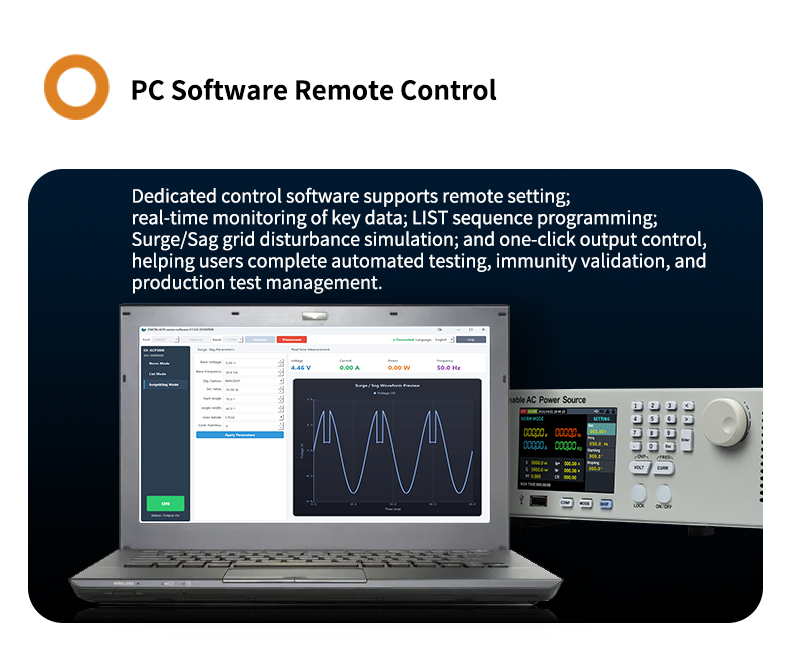

+ LAN, RS485, and USB serial communication interfaces, with SCPI and MODBUS protocol support.
+ 3.95-inch display with a clear, intuitive interface for easy operation.
PDF Export
E-mail Us
The instrument must be operated continuously for more than 30 minutes at the specified operating temperature to achieve the following specifications
|
Model |
ACP2000 |
ACP3000 |
ACP3045 |
|
|
Rate Output (0℃-40℃) |
AC Output voltage |
0-300V |
||
|
DC Output |
-- |
-- |
- 450V~450V |
|
|
AC Output current |
0-15Arms, 45Apeak |
0-15Arms, 45Apeak |
0-15Arms, 45Apeak |
|
|
DC Output current |
-- |
-- |
0-10A |
|
|
AC Output Frequency |
40-400Hz |
40-400Hz |
40-400Hz |
|
|
AC Output power |
2kVA |
3kVA |
||
|
Input |
Volt/freq./Curr |
100V-240Vac；45Hz-65Hz；16Arms Max |
||
|
Load regulation (%of output+offset) |
≤0.1%FS(Resistive Load) |
≤0.1%FS(Resistive Load) |
≤0.1%FS(Resistive Load) |
|
|
Line regulation (%of output+offset) |
≤0.5%FS(Resistive Load) |
≤0.5%FS(Resistive Load) |
≤0.5%FS(Resistive Load) |
|
|
Setting resolution |
Voltage |
10mV |
10mV |
10mV |
|
Current |
10mA |
10mA |
10mA |
|
|
Readback resolution |
Voltage |
10mV |
10mV |
10mV |
|
Current |
10mA |
10mA |
10mA |
|
|
Setting accuracy |
Voltage |
≤0.2%+600mV |
≤0.2%+600mV |
≤0.2%+600mV |
|
Readback accuracy |
Voltage |
≤0.2%+600mV |
≤0.2%+600mV |
≤0.2%+600mV |
|
Phase angle |
Start angle |
0-360° |
0-360° |
0-360° |
|
Stop angle |
0-360° |
0-360° |
0-360° |
|
|
Total Harmonic Distortion(THD)* |
≤0.6% |
≤0.6% |
≤0.6% |
|
|
Crest Factor (CF) |
3 |
3 |
3 |
|
|
Temp. coefficient |
±(0.04% per degree from 25℃) |
±(0.04% per degree from 25℃) |
±(0.04% per degree from 25℃) |
|
|
Working temperature |
0-40℃ |
|||
|
Display |
3.95-inch TFT LCD |
|||
|
Interface |
USB，LAN，RS485 |
|||
|
Dimensions(W*H*D) |
428mm * 88.0mm*446.2mm |
428mm * 88.0mm*446.2mm |
428mm * 88.0mm*446.2mm |
|
|
Weight |
Approx. 11kg |
|||
The accessories subject to final delivery.
-
Quick Guide -
USB Cable -

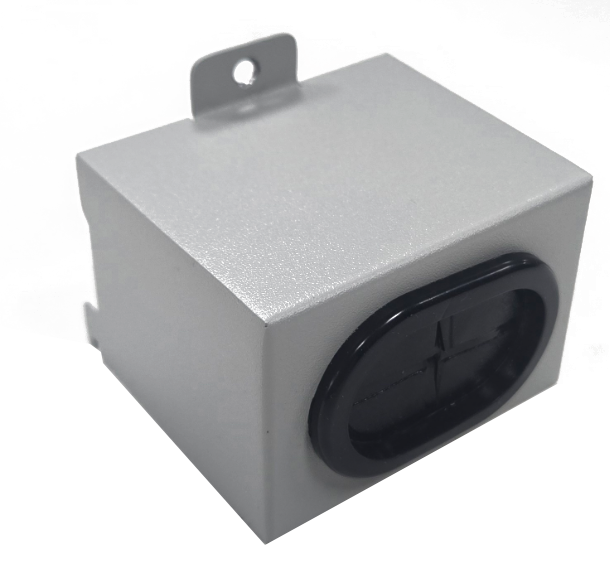

AC/DC terminal protective cover -

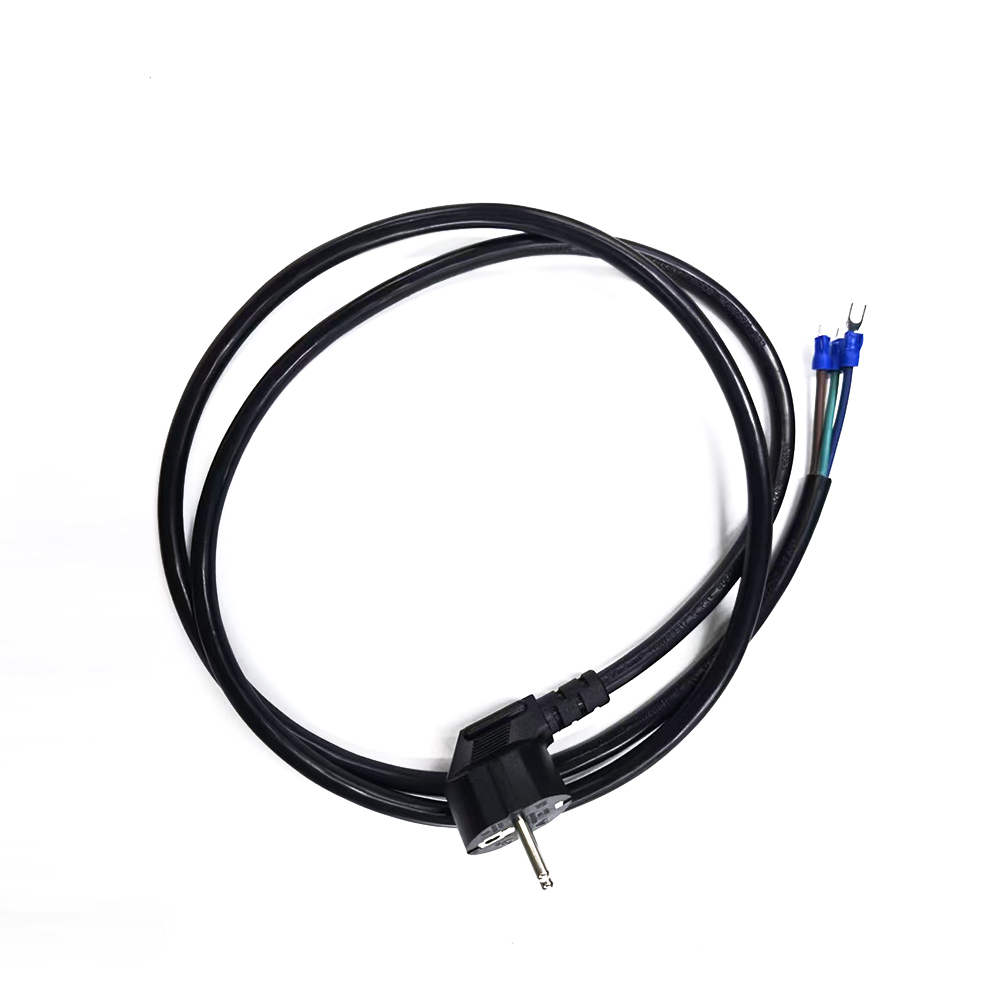

16A Power Cord
